Fit a beta interval regression model

Fits by maximum likelihood a beta regression for scores on a bounded scale, treated as coarsened (interval-censored) observations of a latent beta variable (Lopes, 2023). A one-part formula y ~ x1 + x2 keeps the second parameter constant (brs_fit_fixed); a two-part formula y ~ x1 + x2 | z1 + z2 also models it (brs_fit_var).

Usage

brs(
  formula,
  data,
  link = NULL,
  link_phi = NULL,
  ncuts = NULL,
  lim = NULL,
  repar = 2L,
  method = c("BFGS", "L-BFGS-B"),
  hessian_method = c("cpp", "numDeriv", "optim"),
  interval = NULL,
  start = NULL,
  control = list()
)

Arguments

formula: A Formula-style formula with two parts: y ~ x1 + x2 | z1 + z2.
data: Data frame.
link: Link for the first parameter (the mean under repar = 1, 2; the shape $p$ under repar = 0). NULL (default) selects the link implied by repar: "logit" for repar = 1, 2, "log" for repar = 0. See the 'Reparameterizations and links' section of brs for the admissible values.
link_phi: Link for the second parameter. NULL (default) selects "logit" for repar = 2 (dispersion on $(0, 1)$) and "log" for repar = 0, 1 (positive shape/precision).
ncuts: Integer $K$: the maximum score, so that the scale is $0, 1, \ldots, K$ ($K + 1$ categories). NULL (default) uses the value stored by brs_prep or brs_sim, or 100 for raw data.
lim: Half-width of the score cell in $(0, 0.5]$ (interval = "mid" only). NULL (default) uses attr(data, "lim") from brs_prep, or 0.5; same rule as ncuts. Values below 0.5 warn (partial coarsening).
repar: Reparameterization scheme (default 2); see brs_repar.
method: Optimization method (default "BFGS").
hessian_method: How the Hessian for vcov() is computed: "cpp" (default; compiled chain rule on the linear predictors), "numDeriv" (numDeriv::hessian() of the log-likelihood) or "optim" (the finite-difference Hessian returned by optim).
interval: Direction of the uncertainty interval, "mid", "right" or "left" (see brs_check). NULL (default) uses attr(data, "interval") from brs_prep, or "mid"; same rule as ncuts.
start: Optional numeric vector of starting values (mean coefficients, then dispersion coefficients). NULL (default) uses compute_start(). Refits (bootstrap, jackknife) pass the parent estimate here.
control: Control list for optim; its entries are merged into the default list(maxit = 5000L).

Value

An object of class "brs": a list with, among others, par (estimates on the link scales), coefficients (mean and precision parts), value (maximised log-likelihood), hessian, convergence, diagnostics (see 'Fit diagnostics'), hatmu (first parameter per observation: the mean, or the shape $p$ under repar = 0), hatphi, Y (columns left, right, yt, y, delta), ncuts, lim, interval, repar, link and link_phi.

Details

The scores run over $0, 1, \ldots, K$ with $K =$ ncuts: the scale has $K + 1$ categories and $K$ is its maximum. A scale that starts at 1, such as a Likert item 1–5, must be shifted to 0–4 and fitted with ncuts = 4; otherwise the lowest category is read as an interior score and the censoring of the lower border is lost.

Raw scores are converted to cells and censoring types by brs_check with ncuts, lim and interval; data from brs_prep or brs_sim are used as they are, with their stored ncuts, lim and interval. Values in $(0, 1)$ are exact observations. The model is $$Y_i \sim \mathrm{Beta}(a_i, b_i), \qquad g_1(\mu_i) = x_i^\top \beta, \qquad g_2(\phi_i) = z_i^\top \gamma,$$ with $(a_i, b_i)$ obtained from $(\mu_i, \phi_i)$ by brs_repar.

Likelihood

With cell $[l_i, u_i]$ and censoring type $\delta_i$, $$L(\beta, \gamma) = \prod_{i=1}^n f(y_i)^{I(\delta_i = 0)}\, F(u_i)^{I(\delta_i = 1)}\, \{1 - F(l_i)\}^{I(\delta_i = 2)}\, \{F(u_i) - F(l_i)\}^{I(\delta_i = 3)},$$ where $f$ and $F$ are the beta density and distribution function with shapes $(a_i, b_i)$. The four factors are exact values ($\delta = 0$), the lowest score ($\delta = 1$, left-censored), the highest score ($\delta = 2$, right-censored) and the other scores ($\delta = 3$, interval-censored). This is eq. eqn_verossimilhanca_geral of Lopes (2023); the table of censoring types in the same section swaps the labels $\delta = 1$ and $\delta = 2$, and the package follows the equation.

Numerical details: endpoints are clamped to $[10^{-5}, 1 - 10^{-5}]$ and there is no probability floor; an interval probability uses lower-tail probabilities when the interval midpoint is at or below the mean $a/(a + b)$ and upper tails otherwise, which avoids cancellation; below $10^{-240}$ an endpoint Laplace approximation of the tail replaces it; a non-finite contribution becomes $-10^6$, as does a NaN parameter. The mean and the dispersion (repar = 2) are clamped to $[10^{-5}, 1 - 10^{-5}]$, the precision and the shape $p$ to $[10^{-5}, 10^8]$, and the beta shapes to $[10^{-12}, 10^8]$.

Estimation

optim (method = "BFGS", the default, or "L-BFGS-B"; maxit = 5000 unless control says otherwise) maximises the log-likelihood, which is evaluated in C++. The gradient uses the chain rule on the two linear predictors: the derivatives of each contribution with respect to $\eta_{1i}$ and $\eta_{2i}$ are Richardson central differences with step $10^{-4}\max(1, |\eta|)$, and the gradient is $X^\top d_1$ and $Z^\top d_2$. The Hessian behind vcov() is built the same way from the per-observation second derivatives (step $3 \times 10^{-4}\max(1, |\eta|)$; hessian_method = "cpp", the default): $$H = \left(\begin{array}{cc} X^\top W_{11} X & X^\top W_{12} Z \\ Z^\top W_{12} X & Z^\top W_{22} Z \end{array}\right),$$ with $W_{jk}$ diagonal matrices of the second derivatives of each contribution in $(\eta_{1i}, \eta_{2i})$. "numDeriv" differentiates the log-likelihood with numDeriv::hessian() and "optim" takes the finite-difference Hessian of optim. Lopes (2023, "Estimacao") also uses BFGS with numerical derivatives; here they are taken on the linear predictors, not on the coefficients.

Starting values: start when given (bootstrap and jackknife refits pass the parent estimate); otherwise a quasi-binomial GLM of the cell midpoints for the mean, and for the second parameter the moment estimate on the midpoints as the intercept with zero slopes; under repar = 0 both shapes by the method of moments. The covariance matrix is $(-H)^{-1}$ at the estimate (vcov.brs); no generalised inverse is used.

Fit diagnostics

Before optim, the mean and precision model matrices are checked (pivoted QR, tolerance $10^{-7}$; condition number of the matrix with unit-length columns). After it, fit$diagnostics holds grad_norm (largest absolute gradient), grad_gain (the log-likelihood a Newton step would still gain, $\frac12 g^\top (-H)^{-1} g$), grad_step (that step in standard errors), min_eig, max_eig and min_eig_scaled (eigenvalues of $-H$, the last in correlation form), hessian_nd, n_clamped and clamped (observations on the clamps of the likelihood). Each problem gives one line:

“model matrix is rank deficient” (error): Some columns are linear combinations of others (the message names them). Remove or recode them.
“model matrix is nearly collinear”: Condition number above $10^4$: estimates and standard errors are unstable. Drop or combine the named columns, or centre them.
“Optimizer did not converge”: optim stopped at its iteration limit or failed. Try method = "L-BFGS-B", rescale the covariates or simplify the model.
“Gradient not ~0 at the estimate”: A Newton step would still gain more than 0.01 in log-likelihood although optim reported convergence. Refit with the other method; the message asks to rescale the covariates when their scales differ by more than $10^3$ (e.g. a raw income next to a dummy).
“Hessian near-singular or not negative definite (SEs unreliable)”: The likelihood is nearly flat or curved the wrong way in some direction: a parameter that is not identified, or covariates on very different scales (the message then asks to rescale them). vcov() returns NA for variances it cannot estimate; use likelihood-ratio tests (anova.brs) or brs_bootstrap instead of Wald statements, rescale, or simplify the model.
“observations ... on the clamp boundary”: Fitted means, dispersions or shapes sit on the numerical limits above, typically because a group of observations lies entirely at one end of the scale (separation) or every observation is censored on the same side. The coefficients drift towards infinity and are not interpretable; merge sparse groups or remove the separating covariate.

brsmm adds a check of the variance components.

Reparameterizations and links

`repar`	parameters (Lopes, 2023)	`link`	`link_phi`
0	shapes $p, q > 0$; eq. `eqn_beta_p1` (regression on the shapes is a package extension)	`log`, `sqrt`	`log`, `sqrt`
1	mean $\mu \in (0, 1)$, precision $\phi > 0$; "parametrizacao 1" (Ferrari and Cribari-Neto, 2004)	`logit`, `probit`, `cauchit`, `cloglog`	`log`, `sqrt`
2	mean $\mu \in (0, 1)$, dispersion $\phi \in (0, 1)$; "parametrizacao 2" (Bayer, 2011), written $\sigma$ there	`logit`, `probit`, `cauchit`, `cloglog`	`logit`, `probit`, `cauchit`, `cloglog`

The first link of each cell is the default (link = NULL, link_phi = NULL); any other combination is an error. "identity", "inverse" and "1/mu^2" are not accepted for positive parameters. With "sqrt" the inverse link is flat for $\eta \le 0$, and a warning is issued when a fitted linear predictor lies there. The mean and variance of $Y$ under each scheme are given in brs_repar. Under repar = 0 the object stores the shape $p$ in hatmu, while fitted(), predict(type = "response"), residuals and marginal effects use $E[Y] = p/(p + q)$.

Interval direction

interval = "mid" (default) uses the cells $[s - \mathrm{lim}, s + \mathrm{lim}]/K$; "right" and "left" use $K + 1$ equal cells $[s, s + 1]/(K + 1)$ (the dissertation's $r$ and $l$, with a package normalisation). "right" and "left" give the same fit and differ only in predict(type = "score"); "mid" and "right"/"left" are different coarsening models, whose log-likelihoods and AIC are not comparable. Details: brs_check.

References

Lopes, J. E. (2023). Modelos de regressao beta para dados de escala. Master's dissertation, Universidade Federal do Parana, Curitiba. URI: https://hdl.handle.net/1884/86624.

Ferrari, S. L. P., and Cribari-Neto, F. (2004). Beta regression for modelling rates and proportions. Journal of Applied Statistics, 31(7), 799–815. doi:10.1080/0266476042000214501

Bayer, F. M. (2011). Modelagem e inferencia em regressao beta. PhD thesis, Universidade Federal de Pernambuco.

Hawker, G. A., Mian, S., Kendzerska, T., and French, M. (2011). Measures of adult pain: Visual Analog Scale for Pain (VAS Pain), Numeric Rating Scale for Pain (NRS Pain), McGill Pain Questionnaire (MPQ), Short-Form McGill Pain Questionnaire (SF-MPQ), Chronic Pain Grade Scale (CPGS), Short Form-36 Bodily Pain Scale (SF-36 BPS), and Measure of Intermittent and Constant Osteoarthritis Pain (ICOAP). Arthritis Care and Research, 63(S11), S240-S252. doi:10.1002/acr.20543

Examples

# Synthetic NRS-11 pain scores (0-10, so ncuts = 10): 4 groups x 3
# post-operative times, patterned on the knee-surgery design of Lopes (2023).
# Simulated, not real data.
set.seed(2023)
nrs <- expand.grid(id = 1:80, time = c("6h", "12h", "24h"))
nrs$group <- factor(paste0("g", (nrs$id - 1) %% 4 + 1))
eta <- -1.3 + c(0, 0.75, 0.3)[nrs$time] + c(0, -0.1, 0.05, 0.1)[nrs$group]
shp <- brs_repar(mu = plogis(eta), phi = 0.3, repar = 2)  # dispersion 0.3
nrs$y <- round(10 * rbeta(nrow(nrs), shp$shape1, shp$shape2))

# Default cells [s - 0.5, s + 0.5] / 10; scores 0 and 10 are censored
fit <- brs(y ~ time + group, data = nrs, ncuts = 10)
summary(fit)
#>
#> Call:
#> brs(formula = y ~ time + group, data = nrs, ncuts = 10)
#>
#> Quantile residuals:
#>     Min      1Q  Median      3Q     Max
#> -2.6508 -0.6413 -0.0744  0.6394  3.4755
#>
#> Coefficients (mean model with logit link):
#>             Estimate Std. Error z value Pr(>|z|)
#> (Intercept) -1.34757    0.19310  -6.979 2.98e-12 ***
#> time12h      0.80357    0.18644   4.310 1.63e-05 ***
#> time24h      0.52379    0.18703   2.801   0.0051 **
#> groupg2     -0.24057    0.21221  -1.134   0.2570
#> groupg3      0.02198    0.20595   0.107   0.9150
#> groupg4      0.03061    0.20890   0.147   0.8835
#> ---
#> Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#>
#> Phi coefficients (precision model with logit link):
#>       Estimate Std. Error z value Pr(>|z|)
#> (phi) -0.87023    0.09603  -9.062   <2e-16 ***
#> ---
#> Signif. codes:  0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1
#> ---
#> Log-likelihood: -502.6418 on 7 Df | AIC: 1019.2835 | BIC: 1043.6480
#> Pseudo R-squared: 0.0801  (midpoint approx.; interpret with caution for heavily censored data)
#> Number of iterations: 39 (BFGS)
#> Censoring: 187 interval | 50 left | 3 right
#>
confint(fit)
#>                  2.5 %     97.5 %
#> (Intercept) -1.7260446 -0.9691007
#> time12h      0.4381456  1.1689950
#> time24h      0.1572216  0.8903573
#> groupg2     -0.6565030  0.1753598
#> groupg3     -0.3816755  0.4256376
#> groupg4     -0.3788198  0.4400386
#> (phi)       -1.0584453 -0.6820188

# Post-fit checks: no log-likelihood left to gain, negative definite Hessian, no clamps
fit$diagnostics[c("grad_gain", "hessian_nd", "n_clamped")]
#> $grad_gain
#> [1] 1.549109e-11
#>
#> $hessian_nd
#> [1] TRUE
#>
#> $n_clamped
#> [1] 0
#>

# Same scores read with right-direction cells [s, s + 1] / 11
fit_r <- brs(y ~ time + group, data = nrs, ncuts = 10, interval = "right")
cbind(mid = coef(fit), right = coef(fit_r))
#>                     mid       right
#> (Intercept) -1.34757268 -1.22519060
#> time12h      0.80357031  0.71838979
#> time24h      0.52378943  0.46661454
#> groupg2     -0.24057159 -0.21019291
#> groupg3      0.02198105  0.02341584
#> groupg4      0.03060944  0.04458164
#> (phi)       -0.87023203 -1.16135611

# New patients: mean on (0, 1), latent score, expected score, P(S = s)
nd <- data.frame(time = c("6h", "12h", "24h"), group = "g1")
predict(fit, newdata = nd)
#> [1] 0.2062675 0.3672570 0.3049612
predict(fit, newdata = nd, type = "score")
#> [1] 2.062675 3.672570 3.049612
predict(fit, newdata = nd, type = "expected_score")
#> [1] 2.034529 3.663686 3.034409
round(brs_predict_scoreprob(fit, newdata = nd), 3)
#>      score_0 score_1 score_2 score_3 score_4 score_5 score_6 score_7 score_8
#> [1,]   0.326   0.217   0.134   0.096   0.072   0.055   0.041   0.029   0.019
#> [2,]   0.104   0.162   0.139   0.124   0.110   0.098   0.085   0.072   0.058
#> [3,]   0.166   0.193   0.146   0.120   0.100   0.083   0.068   0.054   0.040
#>      score_9 score_10
#> [1,]   0.010    0.001
#> [2,]   0.040    0.009
#> [3,]   0.024    0.005

# Randomized quantile residuals respect the censoring (N(0, 1) under the model)
set.seed(1)
summary(residuals(fit, type = "rqr"))
#>     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
#> -2.62992 -0.61329 -0.08796  0.01357  0.70367  2.71764

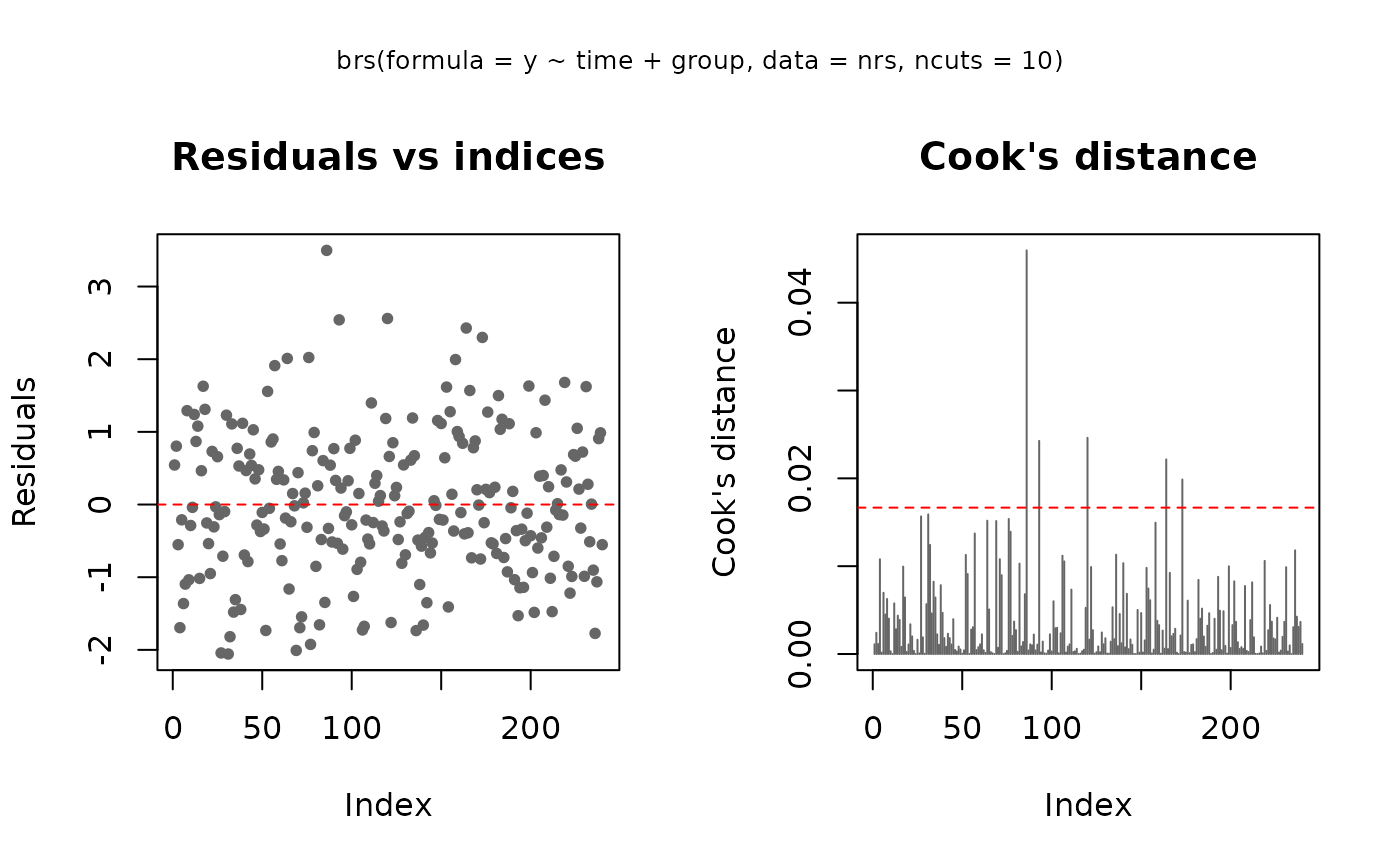

plot(fit, which = 1:2)
